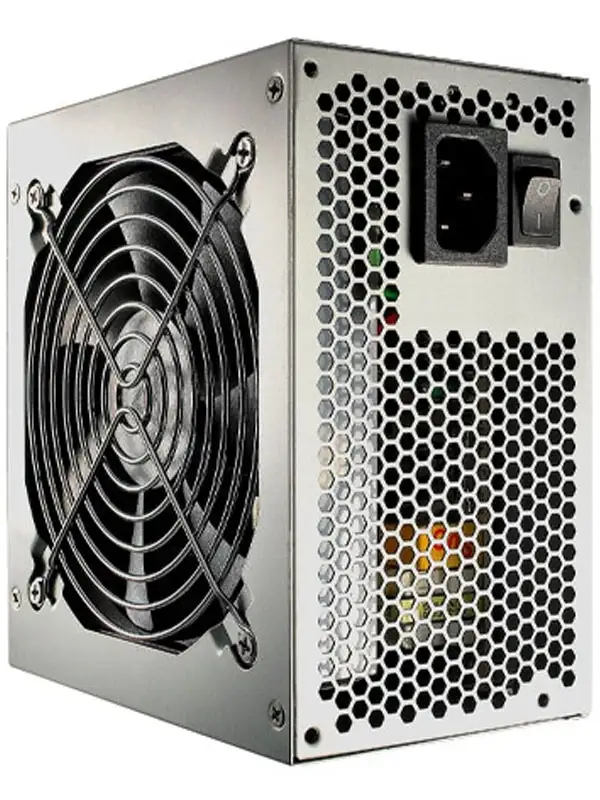

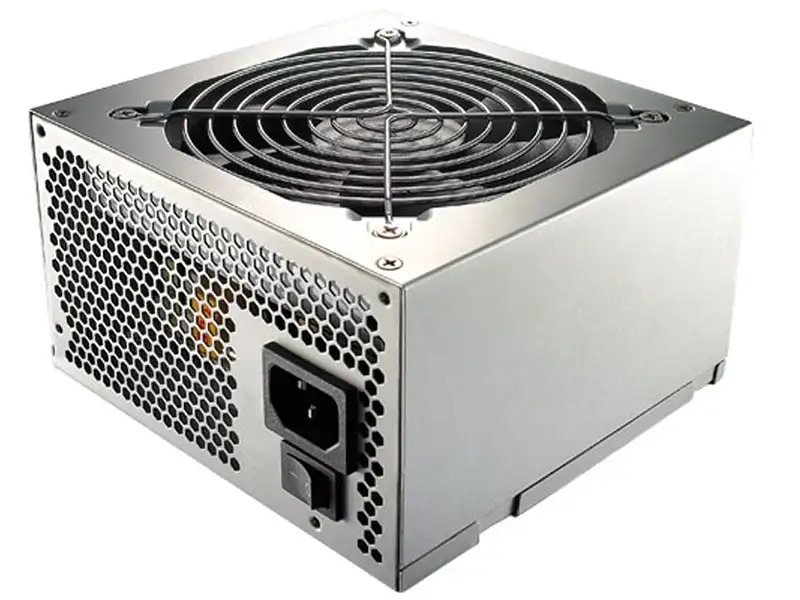

Model RS-350-PSAR-I3
RS-350-PSAP-I3 Type Intel Form Factor ATX 12V V2.3 Dimension (W x L x H) 150 x 140 x 86 mm Input Voltage 110~120V / 220~240V Input Current RS-350-PSAR-I3 : 8A @ 115Vac / 5A @ 220Vac
RS-350-PSAP-I3 : 5A @ 220Vac Input Frequency Range 47 ~ 63 Hz PFC None PFC: RS-350-PSAR-I3
Passive PFC: RS-350-PSAP-I3 Power Good Signal 100 ~ 500 ms Hold Up Time > 17 ms Efficiency >70% Typically MTBF >100,000 hrs Protection OVP / OCP / OPP / SCP Output Capacity 350 Watts Operation Temperature 0~40°C (Nominal Input Voltage) Regulatory CE / GOST / C-tick / UL Fan 120mm fan Connector M/B 20+4 Pin x 1
CPU 4+4 Pin x 1
4 Pin Peripheral x 3
SATA x 3
4 Pin Floppy x 1
Warranty:2 Years
)
