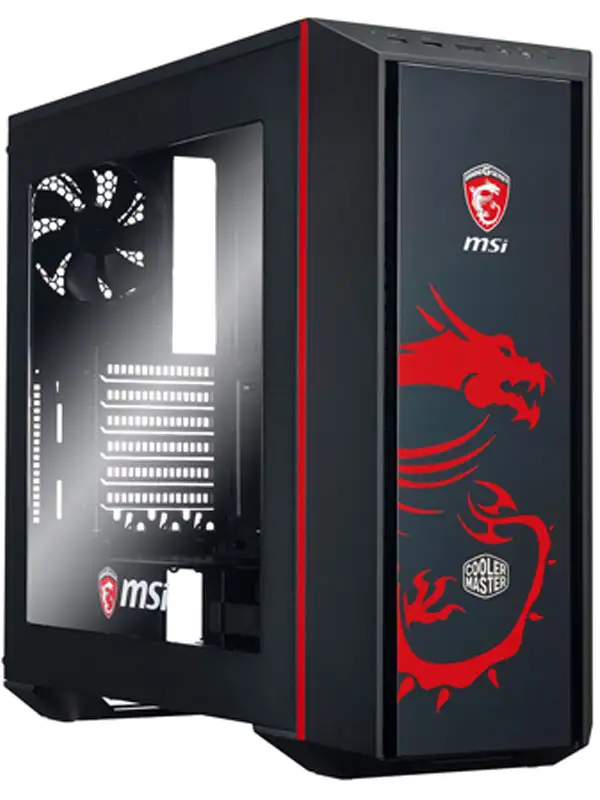

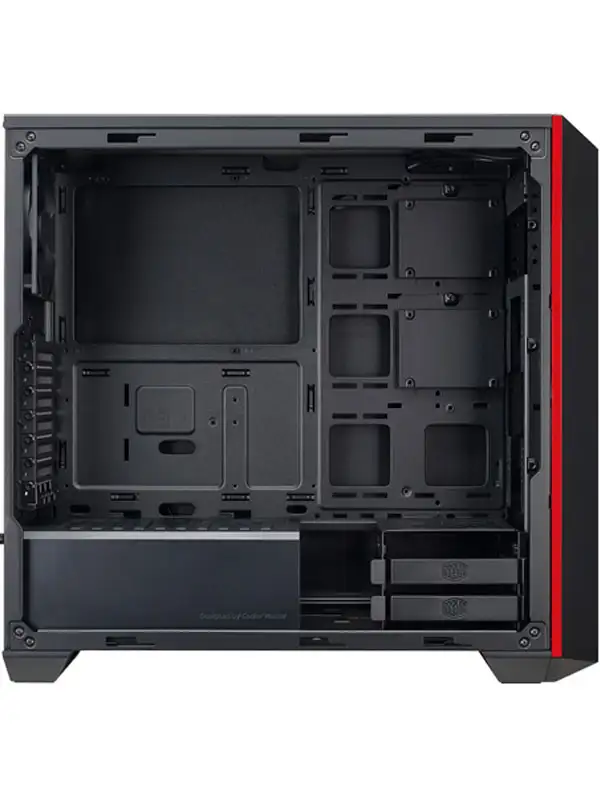

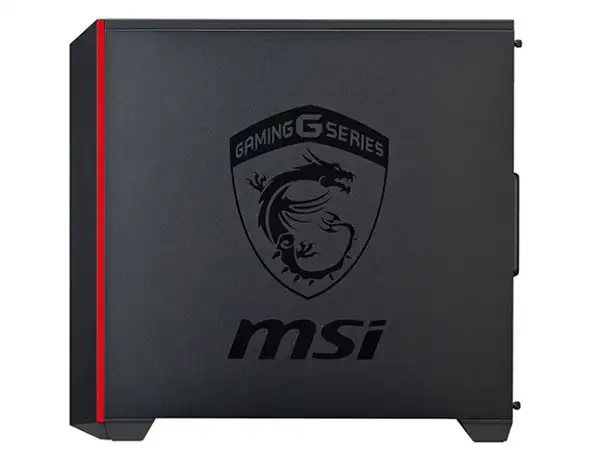

Cooler Master MasterBox 5 MSI Edition (MCX-B5S2)

Product Name

MasterBox 5 MSI Edition

Model Number

MCX-B5S2-KWNN-03-MI

Available Color

Black & Red with MSI logo

Materials

Steel Body, Plastic Mesh Bezel

Dimensions (LxWxH)

500 x 220 x 475 mm

Motherboard Support

ATX, Micro-ATX, Mini-ITX

Expansion Slots

7

Drive Bays

5.25"

No

Combo 3.5" / 2.5"

2

SSD

1

I/O Panel

USB 3.0 x 2, Audio in / out

Pre-installed Fan(s)

Rear

120mm x 1

Fan Support

Front

120mm x 3 / 140mm x 2

Rear

120mm x 1

Liquid Cooling Support

Front

240mm / 280mm / 360mm radiator, up to 50mm thickness without fan

Rear

120mm x 1

Clearance

CPU Cooler

167mm / 6.5"

PSU

180mm / 7.1"

Graphics Card

410mm / 16.1"
410mm / 16.2" (w/o 3.5" HDD Cage)

Cable Routing

Behind Motherboard Tray

25mm - 35mm

Power Supply Support

Bottom mount, ATX

Dust Filters

Bottom

EAN Code

4719512058459

UPC Code

884102031250
