Product Name

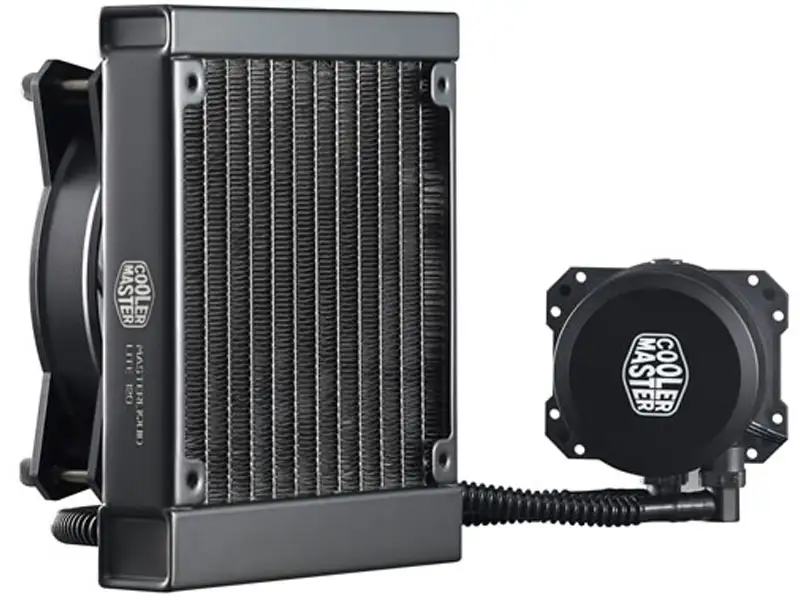

MasterLiquid Lite 120

Model Number

MLW-D12M-A20PW-R1

CPU Socket

Intel® LGA 2066 / 2011-v3 / 2011 / 1366 / 1151 / 1150 / 1156 / 1155 / 775 socket

AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 socket

Main System

Dimensions

62 x 62 x 36.4 mm (2.4 x 2.4 x 1.4")

Power Connector

4-Pin

Waterblock

Dimensions

80.3 x 76 x 42.2mm (3.2 x 3.0 x 1.7")

Pump

MTTF

70,000 hours

Noise Level

< 8 dBA

Connector

3-Pin

Rated Voltage

12 VDC

Load Current

0.3 A

Power Consumption

3.96 W

Radiator

Dimensions

157 x 119.6 x 27mm (6.2 x 4.7 x 1.1")

Material

Aluminum

Fan

Dimension

120 x 120 x 25 mm (4.7 x 4.7 x 1")

Speed

650 ~ 2000 RPM (PWM) ± 10%

Air Flow

66.7 CFM ± 10%

Air Pressure

2.34 mmH₂O ± 10%

MTTF

160,000 hours

Noise Level

6-30 dBA

Connector

4-Pin (PWM)

Rated Voltage

12 VDC

Warranty

1 Year
