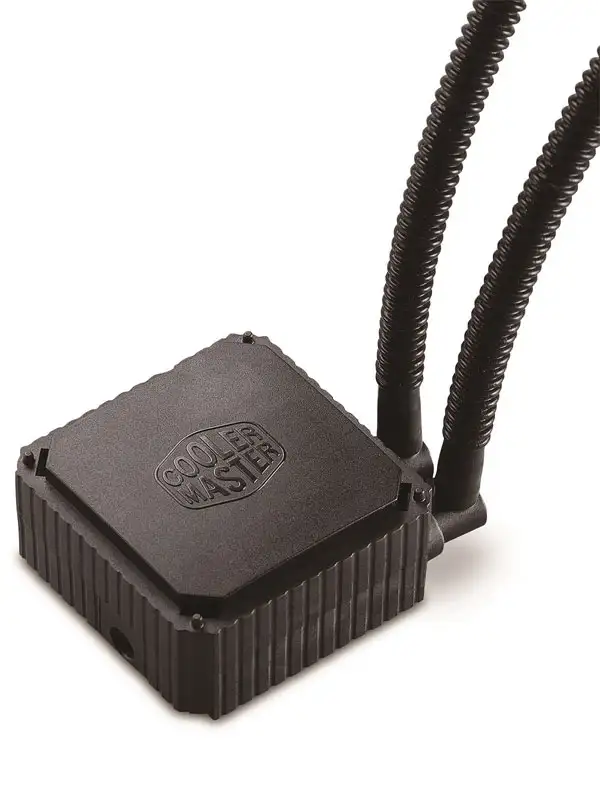

Product Name

Seidon 120V Plus

Model Number

RL-S12P-20PB-R1

CPU Socket

Intel® LGA 2066 / 2011-3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 socket

AMD® AM4* / AM3+ / AM3 / AM2 / FM2 / FM1 socket

Dimension

62 x 62 x 36.4 mm (2.4 x 2.4 x 1.4 inch)

Radiator Dimensions

154 x 119 x 27 mm (6.0 x 4.7 x 1.1 inch)

Radiator Material

Aluminum

Tube Length

315 mm

Tube Diameter

Φ5.8

Fan Dimension

120 x 120 x 25 mm (4.7 x 4.7 x 1 in)

Fan Speed

800~2000 RPM (PWM) ± 10%

Fan Airflow

30 ~ 95 CFM ± 10%

Fan Air Pressure

0.93 ~ 2.75 mm H2O ± 10%

Fan Life Expectancy

40,000 hours

Fan Noise Level (dB-A)

12 ~ 35 dBA

Bearing Type

Rifle bearing

Connector

4-Pin

Fan Rated Voltage

12 VDC

Fan Rated Current

0.3A

Power Consumption

3.6W

Pump Life Expectancy

70,000 hrs

Pump Noise

<23 dBA

Pump Rated Voltage

12 VDC

Pump Power

3.6W

Warranty

1 Year
