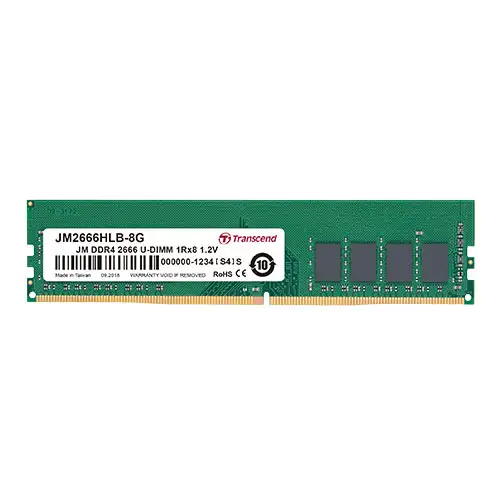

Designed for high-end desktop PCs, Transcend's DDR4-2666 U-DIMM memory modules are fully compatible with Intel® Coffee Lake and AMD Ryzen™ processors. Each module is constructed of top quality DRAM chips and rated at 2666MHz, maximizing data transmission efficiency at a bandwidth of up to 21GB/s. Operating at a nominal voltage of just 1.2V, Transcend's DDR4-2666 U-DIMMs allow for a lower electrical load on the memory controller, consuming up to 40% less power than standard 1.5V DDR3 DIMMs.
Features
- JEDEC standard 1.2V ± 0.06V power supply
- 8 bit pre-fetch
- Burst Length: 4, 8
- 16 Banks (4 Bank Groups)
- Support DBI mode
- Support Command/Address parity detection
- Support Data Cyclic Redundancy Check (CRC) for improved data reliability
- Bi-directional differential data-strobe
- On-die termination with ODT pin
- Serial presence detect with EEPROM
- 100% tested for stability, compatibility and performance
| RAM Type |
|
|---|
| DIMM Type |
|
|---|
| Frequency |
|
|---|
| CAS Latency |
|
|---|
| Capacity |
|
|---|
| Rank |
|
|---|
| Pin |
288 pin |
|---|
| DRAM |
|
|---|
| Voltage |
1.2V |
|---|
| PCB Height |
1.23 inches |
|---|
